Power in ac circuits electrical power consumed by a resistance in an ac circuit is different to the power consumed by a reactance as reactances do not dissipate energy in a dc circuit the power consumed is simply the product of the dc voltage times the dc current given in watts. In a purely resistive circuit all circuit power is dissipated by the resistors.

Electric Power

Power Dissipation

Pplato Flap Phys 5 4 Ac Circuits And Electrical

Voltage and current are 900 out of phase with each other.

Power dissipated by a resistor ac. In case of pure resistive circuit with an ac rms power supply the power dissipated is same as that in case of a resistor connected to dc power supply. This is the maximum power that can be dissipated from the resistor without it burning out. The resistor is a special case and the ac power expression for the general case includes another term called the power factor which accounts for phase differences between the voltage and current.

Because energy is dissipated in the resistor less energy is returned to the circuit than for a pure capacitive circuit and the negative pulses are considerably smaller. In a purely reactive circuit no circuit power is dissipated by the loads. Vrms and irms are rms values of voltage and current respectively.

Thus there is a net power drawn from the supply which will be dissipated as heat. Rather power is alternately absorbed from and returned to the ac source. But as there is only one quarter as much voltage across each resistor there is only one quarter as much power dissipated in each resistor.

For this arrangement one only needs the four resistors to be rated for 14 w. The power dissipated in the resistor. This electrical power is converted into heat energy hence all resistors have a power rating.

The fact that the power dissipated in a given resistance depends upon the square of the current dictates that for high power applications you should minimize the current. Any resistor in a circuit that has a voltage drop across it dissipates electrical power. Voltage and current are in phase with each other.

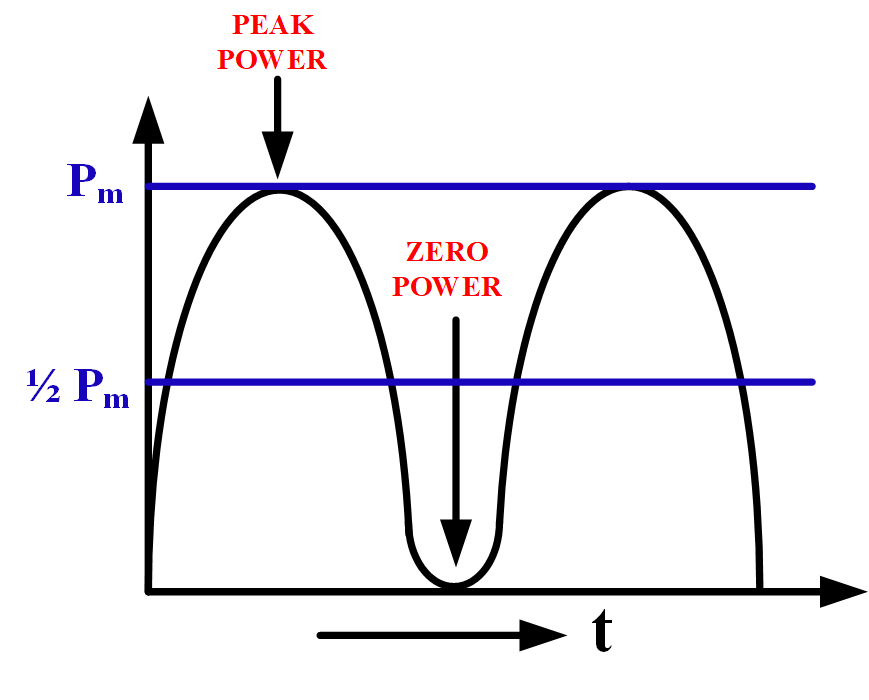

At any point of time pt vt it v m cos wwww t i m cos ww w t v m i m cos 2 wwww t. Power waveform in a pure resistance then the power dissipated in a purely resistive load fed from an ac rms supply is the same as that for a resistor connected to a dc supply and is given as. P vrms irms i2rms r v2rms r.

Average power dissipated by a resistor on ac current asked 7 years 3 months ago 1 and so evidently the peak power dissipated would be the peak voltage divided by the resistance. Working through that example.
